Main

Human intuition and know-how have been crucial in improving algorithms. However, many algorithms have reached a stage whereby human experts have not been able to optimize them further, leading to an ever-growing computational bottleneck. The work in classical program synthesis literature, spanning many decades, aims to generate correct programs and/or optimize programs using proxies for latency. These include enumerative search techniques4,5,6,7 and stochastic search5,6,8,9,10 as well as the more recent trend of using deep learning in program synthesis for generating correct programs11,12,13,14,15,16. Using deep reinforcement learning (DRL), we can take this a step further by generating correct and performant algorithms by optimizing for actual measured latency at the CPU instruction level, by more efficiently searching and considering the space of correct and fast programs compared to previous work.
人類直覺和專業知識對改善演算法至關重要。然而，許多演算法已經達到一個階段，人類專家無法進一步優化它們，導致計算瓶頸不斷擴大。經典程序綜合文獻中的工作，跨越數十年，旨在通過代理延遲生成正確的程序和/或優化程序。這包括枚舉搜索技術 4,5,6,7 和隨機搜索技術 5,6,8,9,10 ，以及近期使用深度學習進行程序綜合以生成正確程序的趨勢 11,12,13,14,15,16 。通過使用深度強化學習（DRL），我們可以進一步發展，通過優化 CPU 指令級別的實際測量延遲，比之前的研發更有效地搜索和考慮正確且快速的程序空間，來生成正確且性能優化的演算法。

One of the fundamental questions in computer science is how to sort a sequence17,18,19,20. This is taught in elementary computer science classes around the world21,22 and is used ubiquitously by a vast range of applications23,24,25. Decades of computer science research have focused on discovering and optimizing sorting algorithms26,27,28. A key component of practical solutions is a small sort over a short sequence of elements; this algorithm is called repeatedly when sorting large arrays that use divide-and-conquer approaches29. In this work, we focus on two types of small sort algorithm: (1) the fixed sort and (2) the variable sort. Fixed sort algorithms sort sequences of a fixed length (for example, sort 3 can only sort sequences of length 3), whereas variable sort algorithms can sort a sequence of varying size (for example, variable sort 5 can sort sequences ranging from one to five elements).
一個計算機科學的基本問題是如何排序一個序列 17,18,19,20 。這在世界各地的基礎計算機科學課程中被教學 21,22 ，並被廣泛應用於各種應用程序 23,24,25 。數十年的計算機科學研究都集中在發現和優化排序算法 26,27,28 。實際解決方案的一個關鍵組成部分是在短序列元素上進行的小規模排序；當對使用分治方法的 large arrays 排序時，會重複調用此算法 29 。在這項工作中，我們著重於兩種小規模排序算法： (1) 固定排序和 (2) 可變排序。固定排序算法對固定長度的序列進行排序（例如，排序 3 只能對長度為 3 的序列進行排序），而可變排序算法可以對大小可變的序列進行排序（例如，可變排序 5 可以對從一個到五個元素的序列進行排序）。

We formulate the problem of discovering new, efficient sorting algorithms as a single-player game that we refer to as AssemblyGame. In this game, the player selects a series of low-level CPU instructions, which we refer to as assembly instructions30, to combine to yield a new and efficient sorting algorithm. This is challenging as the player needs to consider the combinatorial space of assembly instructions to yield an algorithm that is both provably correct and fast. The hardness of the AssemblyGame arises not only from the size of the search space, which is similar to extremely challenging games such as chess (10120 games)31 and Go (10700 games)32, but also from the nature of the reward function. A single incorrect instruction in the AssemblyGame can potentially invalidate the entire algorithm, making exploration in this space of games incredibly challenging.
我們將發現新、高效排序算法的問題定義為一個單人遊戲，我們稱之為 AssemblyGame。在這個遊戲中，玩家選擇一系列低階 CPU 指令，我們稱之為組裝指令 30 ，以組合成為一個新且高效的排序算法。這是挑戰性的，因為玩家需要考慮組裝指令的組合空間，以產生一個既可證明正確又快速的算法。AssemblyGame 的困難性不僅來自搜索空間的大小，這與極具挑戰性的遊戲如國際象棋（10 120 國際象棋遊戲） 31 和將棋（10 700 將棋遊戲） 32 相似，還來自獎勵函數的本質。在 AssemblyGame 中，一個單一的錯誤指令可能會使整個算法失效，使得在這個遊戲空間中的探索極具挑戰性。

To play the game, we introduce AlphaDev, a learning agent that is trained to search for correct and efficient algorithms. This agent is comprised of two core components, namely (1) a learning algorithm and (2) a representation function. The AlphaDev learning algorithm can incorporate both DRL as well as stochastic search optimization algorithms to play AssemblyGame. The primary learning algorithm in AlphaDev is an extension of AlphaZero33, a well-known DRL algorithm, in which a neural network is trained to guide a search to solve AssemblyGame. The representation function is interchangeable and captures the underlying structure of assembly programs. The primary AlphaDev representation is based on Transformers34.
為了遊戲，我們介紹 AlphaDev，一個受訓以尋找正確且高效的算法的學習代理。此代理由兩個核心組成部分，即（1）一個學習算法和（2）一個表示函數。AlphaDev 學習算法可以結合 DRL 以及隨機搜索優化算法來玩 AssemblyGame。AlphaDev 的主要學習算法是知名 DRL 算法 AlphaZero 33 的擴展，其中一個神經網絡被訓練以引導搜索解決 AssemblyGame。表示函數是可交換的，並捕捉組裝程序的潛在結構。AlphaDev 的主要表示基於 Transformers 34 。

Using AlphaDev, we have discovered fixed and variable sort algorithms from scratch that are both new and more efficient than the state-of-the-art human benchmarks. The fixed sort solutions for sort 3, sort 4 and sort 5 discovered by AlphaDev have been integrated into the standard sort function in the LLVM standard C++ library3. This library is used by several million users including universities and numerous international companies35. In addition, we analyse the new algorithm discoveries, compare AlphaDev to stochastic search optimization approaches and apply AlphaDev to further domains to showcase the generality of the approach.
使用 AlphaDev，我們從零開始發現了固定和變量排序演算法，這些演算法既新穎又比現有的先進人類基準更有效。AlphaDev 發現的固定排序解決方案，包括排序 3、排序 4 和排序 5，已整合到 LLVM 標準 C++庫的標準排序功能中 3 。這個庫被包括大學和許多國際公司在內的數百萬用戶使用 35 。此外，我們分析新的算法發現，比較 AlphaDev 與隨機搜索優化方法，並將 AlphaDev 應用到更多領域以展示該方法的普適性。

Representing algorithms as low-level CPU instructions

When compiling algorithms to machine code from a high level language such as C++ (for example, the sorting function in Fig. 1a), the algorithm is first compiled into assembly (Fig. 1b). The assembler then converts the assembly program into executable machine code. In this work, we optimize algorithms at the assembly level30. In a typical assembly program, the values are copied from memory into registers, manipulated between registers and then written back to memory. The set of assembly instructions supported depends on the processor architecture. For the purposes of this work, we focus on a subset of assembly instructions supported by the x86 processor architecture using the AT&T syntax36. Each instruction is of the format Opcode⟨OperandA, OperandB⟩. An example instruction is mov, which is defined as move a value from source (A) to destination (B). Further instruction definitions such as compare (cmp), conditional move (cmovX) and jump (jX) can be found in Extended Data Table 1. In the example in Fig. 1b, %eax, %ecx, %edx, %edi correspond to four different register locations and (%rsi), 4(%rsi) correspond to two different memory locations. The symbol $2 is a placeholder for a constant value, which corresponds to the length of the vector in this example. We use the terms assembly program and assembly algorithm interchangeably in this work. This is because AlphaDev builds an assembly program from scratch, from an initially unordered set of instructions, each time it plays AssemblyGame, defining a new and efficient algorithm.
當將從 C++等高階語言（例如圖 1a 中的排序函數）編譯到機器碼的算法時，該算法首先編譯為汇编語（圖 1b）。然後，編譯器將汇编語程序轉換為可執行機器碼。在這項工作中，我們在汇编語級別優化算法 30 。在典型的汇编語程序中，數值從記憶體複製到寄存器，在寄存器之間進行操作，然後寫回記憶體。支持的汇编語指令集取決於處理器架構。為了這項工作的目的，我們專注於 x86 處理器架構支持的汇编語指令子集，使用 AT&T 語法 36 。每條指令的格式為 Opcode⟨操作數 A ，操作數 B ⟩。一個例子是 mov，定義為從源（A）將值移動到目的地（B）。其他如比較（cmp）、條件移動（cmovX）和跳轉（jX）等指令定義可以在擴展數據表 1 中找到。在圖 1b 的例子中，%eax、%ecx、%edx、%edi 對應於四個不同的寄存器位置，而(%rsi)、4(%rsi)對應於兩個不同的記憶體位置。 $2 符號是一個代表常數值的占位符，對應於本例中的向量長度。在本工作中，我們互換使用「組裝程式」和「組裝演算法」這些術語。這是因為每次 AlphaDev 在玩 AssemblyGame 時，都會從一個最初無序的指令集合中從頭開始建立一個組裝程式，定義一個新且有效的演算法。

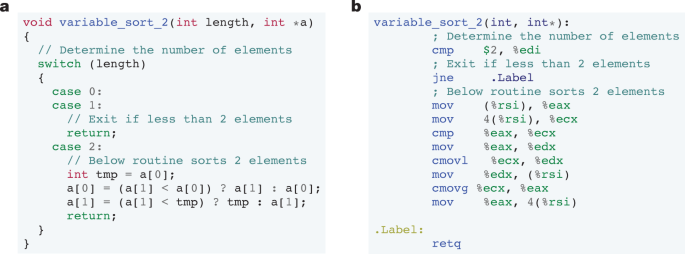

Fig. 1: The relationship between C++ and assembly programs.
figure 1

a, A C++ implementation of a variable sort 2 function that sorts any input sequence of up to two elements. b, The C++ implementation in a is compiled to this equivalent low-level assembly representation.

Full size image

DRL for discovering faster algorithms

In this section, we formulate optimizing algorithms at the CPU instruction level as a reinforcement learning (RL) problem37, in which the environment is modelled as a single-player game that we refer to as AssemblyGame. Each state in this game is defined as a vector St = ⟨Pt, Zt⟩ where Pt is a representation of the algorithm generated thus far in the game and Zt represents the state of memory and registers after executing the current algorithm on a set of predefined inputs. As seen in Fig. 2a, at timestep t, the player receives the current state St and executes an action at. This involves appending a legal assembly instruction (for example, mov<A,B>) to the current algorithm generated thus far. A reward rtis received that comprises both a measure of algorithm correctness and latency. Algorithm correctness (Fig. 2b) involves inputting a set of N test sequences into the current algorithm Pt to generate N outputs. These outputs are then compared to the expected outputs and a correctness reward rt is computed. Latency rewards can be generated by either (1) penalizing the agent for increasing the length of the algorithm (when length and latency are highly correlated) that we refer to as the algorithm length reward, or (2) measuring the actual latency of the algorithm. The game is executed for a limited number of steps, after which the game is terminated. Winning the game corresponds to generating a correct, low-latency algorithm using assembly instructions. Losing the game corresponds to generating an incorrect algorithm or a correct but inefficient algorithm.

Fig. 2: The AssemblyGame and algorithm correctness computation.
figure 2

a, The AssemblyGame is played by AlphaDev, which receives as input the current assembly algorithm generated thus far St and plays the game by selecting an action to execute. In this example, the action is a mov<Register0,Memory1> assembly instruction, which is appended to the current algorithm. The agent receives a reward that is a function of the algorithm’s correctness, discussed in b, as well as the algorithm’s latency. The game is won by the player discovering a low latency, correct algorithm. b, The program correctness and latency computations are used to compute the reward rt. In this example, test sequences are input to the algorithm; for example, in the case of sorting three elements, test inputs comprise all sequences of unsorted elements of length 3. For each sequence, the algorithm output is compared to the expected output (in the case of sorting, the expected output is the sorted elements). In this example, the output \({\bf{D}}{\boldsymbol{{\prime} }}\) does not match the expected output \({\bf{B}}{\boldsymbol{{\prime} }}\) and the algorithm is therefore incorrect.

Full size image

We refer to the agent that plays this single-player game as AlphaDev. The agent’s primary learning algorithm is an extension of the AlphaZero agent32 and guides a Monte Carlo tree search (MCTS) planning procedure using a deep neural network33,38. The input to the neural network is the state St and the output is a policy and value prediction. The policy prediction is a distribution over actions and the value function is a prediction of the cumulative returns R that the agent should expect to receive from the current state St. During a game, the agent receives as input the current state St. The agent then executes an MCTS procedure and uses this to select the next action to take. The generated games are then used to update the network’s parameters, enabling the agent to learn.

It is critical that AlphaDev has a representation39,40 capable of representing complex algorithmic structures to efficiently explore the space of instructions. To achieve this, we introduce the AlphaDev representation network (Extended Data Fig. 1a). This network comprises two components, namely (1) a transformer encoder network that provides the agent with a representation of the algorithm structure, and (2) the CPU state encoder network that helps the agent predict how the algorithm affects the dynamics of memory and registers. The CPU state encoder network comprises a multilayer perceptron that receives as input the state of each register and memory location for a given set of inputs. These networks each output embeddings that are combined to yield the AlphaDev state representation.

Transformer encoder

Transformers are natural text encoders and have had much success with language models recently14,34,41. As such, this motivated us to adapt the standard transformer to model assembly instructions. We developed and incorporated a transformer encoder, our adaptation of the MultiQuery transformer encoder42, into the AlphaDev representation network to represent the assembly instructions. Each assembly instruction’s Opcode and corresponding Operands are converted to one-hot encodings and concatenated to form the raw input sequence. This is fed through a multilayer transformer encoder, which maps it to corresponding embedding vectors (see Extended Data Fig. 1b for an illustration).

Latency value functions

Latency is an important reward signal that is used to guide the agent in discovering performant algorithms. To better estimate latency, we implemented a dual value function setup, whereby AlphaDev has two value function heads: one predicting algorithm correctness and the second predicting algorithm latency. The latency head is used to directly predict the latency of a given program by using the program’s actual computed latency as a Monte Carlo target for AlphaDev during training. This dual-head approach achieved substantially better results than the vanilla, single head value function setup when optimizing for real latency.

Results

Discovering faster sort algorithms

We trained the AlphaDev agent from scratch to generate a range of fixed sort and variable sort algorithms that are both correct and achieve lower latency than the state-of-the-art human benchmarks.

Fixed sorting algorithms

We considered three fundamental algorithms: sort 3, sort 4 and sort 5. The state-of-the-art human benchmarks for these algorithms are sorting networks43 as they generate efficient, conditional branchless assembly code. This means that all instructions are executed sequentially and there is no branching involved. Improving on these algorithms is challenging as they are already highly optimized. As seen in Table 1a, AlphaDev is able to find algorithms with fewer instructions than the human benchmarks for sort 3 and sort 5 and matches the state-of-the-art performance on sort 4. These shorter algorithms do indeed lead to lower latency as the algorithm length and latency are correlated for the conditional branchless case; see Appendix B in Supplementary Information for more details. We also explored scaling to slightly larger sorts using a variant of AlphaDev. We managed to save three instructions on sort 6, two instructions on sort 7 and one instruction on sort 8, which provides a promising basis for future work. See Appendix C in Supplementary Information for an overview of the approach.

Table 1 AlphaDev performance when optimizing for algorithm length and latency
Full size table

Variable sorting algorithms

We considered three variable sorting algorithms: VarSort3, VarSort4 and VarSort5. The human benchmark in each case is defined as an algorithm that, for a given input length, calls the corresponding sorting network. In this case, branching is required, which greatly increases the complexity of the problem as the agent needs to (1) determine how many subalgorithms it needs to construct and (2) build the body of the main algorithm in parallel. The agent may also need to call subalgorithms from other subalgorithms. In this case, optimizing for length leads to significantly shorter algorithms compared to the human benchmarks as seen in Table 1a. However, owing to the complexities introduced by branching, latency and length are not always correlated; see Supplementary Information for more details. As such, we implemented a procedure that measures the actual latency of the programs by taking the fifth percentile of latency measurements across 100 different machines, with computed confidence intervals44, and optimize this metric. See Methods for the full benchmarking setup. When optimizing for latency, the agent improves significantly on the human benchmarks in each case as seen in Table 1b.

New algorithm discoveries

The solutions discovered by AlphaDev include new and exciting algorithmic discoveries that lead to more efficient performance. In the fixed sort setting, we found that AlphaDev discovered two interesting sequences of instructions that, when applied to a sorting network algorithm, reduce the algorithm by one assembly instruction each time. We refer to each sequence of instructions as (1) the AlphaDev swap move and (2) the AlphaDev copy move respectively.

AlphaDev swap move

Figure 3a presents an optimal sorting network for three elements (see Methods for an overview of sorting networks). We will explain how AlphaDev has improved the circled network segment. There are many variants of this structure that are found in sorting networks of various sizes, and the same argument applies in each case. The circled part of the network (last two comparators) can be seen as a sequence of instructions that takes an input sequence ⟨A, B, C⟩ and transforms each input as shown in Table 2a (left). However, a comparator on wires B and C precedes this operator and therefore input sequences where B ≤ C are guaranteed. This means that it is enough to compute min(A, B) as the first output instead of min(A, B, C) as shown in Table 2a (right). The pseudocode difference between Fig. 3b,c demonstrates how the AlphaDev swap move saves one instruction each time it is applied.

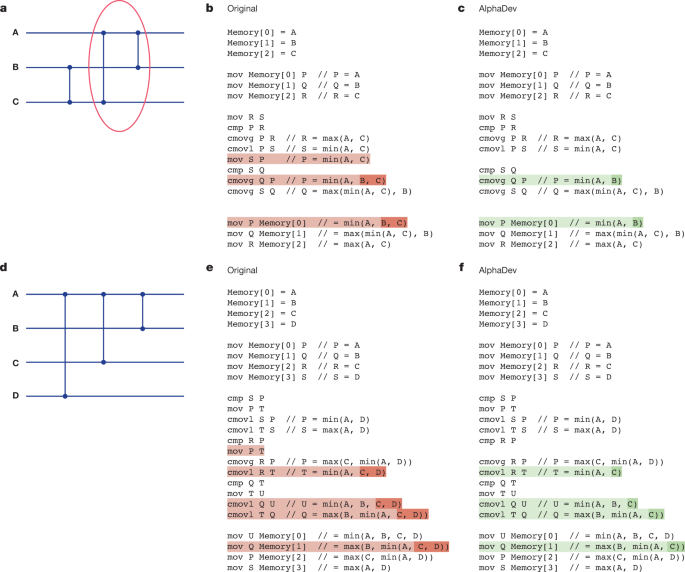

Fig. 3: Sorting networks and algorithmic improvements discovered by AlphaDev.
figure 3

a, An optimal classic sorting network for three inputs. The circled comparators have been improved by AlphaDev. See the AlphaDev swap move for more details. b,c, The assembly pseudocode before applying the AlphaDev swap move (b) and after applying the AlphaDev swap move (c), resulting in the removal of a single instruction. d, An optimal classic sorting network comparator configuration that has been improved by AlphaDev. See the AlphaDev copy move for more details. e,f, The assembly pseudocode before applying the AlphaDev copy move (e) and after applying the AlphaDev copy move (f), resulting in the removal of a single instruction.

Full size image
Table 2 Analysis of the AlphaDev swap and copy moves
Full size table

AlphaDev copy move

Figure 3d presents a sorting network configuration, consisting of three comparators, that is applied across four wires. This configuration is found in a sort 8 sorting network and corresponds to an operator taking four inputs ⟨A, B, C, D⟩ and transforming them into four outputs as seen in Table 2b (on the left). One can show that as part of sort 8, the input that flows into the operator satisfies the following inequality: \({\rm{D}}\ge \min ({\rm{A}},{\rm{C}})\). This means that the operator can be improved by applying the AlphaDev copy move that is defined in Table 2b (on the right), resulting in one instruction less than the original operator. The code difference between the original operator and the code after applying the AlphaDev copy move is visualized in Fig. 3e,f, respectively.

New variable sort algorithms

The VarSort4 algorithm discovered by AlphaDev is particularly interesting. The flow diagram for the human benchmark algorithm and AlphaDev can be seen in Fig. 4a,b, respectively. The human benchmark algorithm determines the length of the input vector, and then calls the corresponding sorting network to sort the elements. The AlphaDev solution has a completely different approach as seen in Fig. 4b. If the length of the input vector is strictly greater than 2, then sort 3 is immediately called, resulting in the first three elements being sorted. If the vector is greater than three elements, then a simplified sort 4 algorithm is called that sorts the remaining unsorted elements in the input vector. It is this simplified part of the routine that yields significant gains in terms of algorithmic length and latency.

Fig. 4: Fundamentally different algorithms discovered by AlphaDev.
figure 4

a, A flow diagram of the variable sort 4 (VarSort4) human benchmark algorithm. In this algorithm, a sequence of unsorted numbers are input into the algorithm. If the sequence length is four, three or two numbers, then the corresponding sort 4, sort 3 or sort 2 sorting network is called that sorts the resulting sequence. The result is then returned and output by the function. b, The VarSort4 algorithm discovered by AlphaDev. This algorithm also receives sequences of length four, three or two numbers as input. In this case, if the length is two, then it calls the sort 2 sorting network and returns. If the length is three then it calls sort 3 to sort the first three numbers and returns. If, however, the length is greater than three, then it calls sort 3, followed by a simplified sort 4 routine that sorts the remaining unsorted number. It is this part of the routine that results in significant latency savings.

Full size image

Stochastic search optimization approaches

It is important to understand the advantages and limitations of RL compared to other approaches for program optimization. As such, we implemented a state-of-the-art stochastic superoptimization approach8, adapted it to the sort setting and used it as the learning algorithm in AlphaDev. We refer to this variant as AlphaDev-S (see Methods for more details). We run this algorithm with at least the same amount of resources and wall-clock time as AlphaDev. AlphaDev-S requires a prohibitive amount of time to optimize directly for latency as latency needs to be computed after every mutation. As such, AlphaDev-S optimizes for a latency proxy, namely algorithm length and, then, at the end of training, we search through all correct programs generated by AlphaDev-S and benchmark each one to find the lowest latency solution. In general, we find that AlphaDev consistently outperforms AlphaDev-S when learning from scratch without previous knowledge. In addition, as the size of the program increases, AlphaDev explores orders of magnitude fewer programs (12 million programs in the worst case) compared to AlphaDev-S (31 trillion programs in the worst case). This may be because AlphaDev is able to better explore the space of algorithms compared to the breadth-first stochastic search procedure that gets stuck more easily into local optima; see Methods for an overview of this exploration hypothesis. In addition, AlphaDev never evaluates latency during search as it uses the latency value function predictions and, because of this, only needs to compute actual measured latency on less than 0.002% of generated programs. When incorporating previous knowledge into AlphaDev-S, such as warm starting the learning algorithm with a near-optimal solution, AlphaDev-S is more computationally efficient for sort 3, sort 4 and sort 5 (branchless assembly algorithms) and also generates competitive low-latency algorithms to that of AlphaDev in each case. However, for algorithms that require branching (if–else statements), in which algorithm length and latency are not well correlated, AlphaDev discovers lower latency solutions than AlphaDev-S, even when warm starting this algorithm with a near-optimal solution. See Methods for an in-depth analysis of these algorithms.

Generalization to additional domains

To test the generality of AlphaDev, we train the agent on a set of additional domains. These include a protocol buffer deserialization subroutine called VarInt, presented below, and a competitive coding problem (see Appendix D in Supplementary Information for more details). The competitive coding domain latency performance is reported in Table 1b.

Protocol Buffer is Google’s open-source data format used to serialize structured data45. This format is commonly used in cases in which performance or network load is of primary concern. The VarInt algorithm46 is a key component in both the serialization and deserialization processes. We trained the AlphaDev agent as in variable sort to optimize the VarInt deserialization function with respect to correctness and measured latency. For correctness, we reward the agent for correctly deserializing each input. We use a set of 80 inputs and corresponding outputs that cover common protobuf use cases. AlphaDev learns an optimized VarInt deserialization function and manages to significantly outperform the human benchmark for single valued inputs. Our agent discovers a branchless solution that is both shorter (Table 1a) and roughly three times faster than the human benchmark (Table 1b). In doing so, the agent also discovered a new VarInt assignment move in which AlphaDev learns to combine two operations into a single instruction leading to latency savings. See Appendix D.1 in Supplementary Information for a full overview of this move. This is a strong indication that AlphaDev is capable of generalizing to optimize non-trivial, real-world algorithms.

Libc++ sort patch

The sort 3, sort 4 and sort 5 algorithms in the LLVM libc++ standard sorting library are called many times by larger sorting algorithms and are therefore fundamental components of the library. We reverse engineered the low-level assembly sorting algorithms discovered by AlphaDev for sort 3, sort 4 and sort 5 to C++ and discovered that our sort implementations led to improvements of up to 70% for sequences of a length of five and roughly 1.7% for sequences exceeding 250,000 elements. These improvements are for the uint32, uint64 and float data types for ARMv8, Intel Skylake and AMD Zen 2 CPU architectures; see Appendix E in Supplementary Information for the full performance tables. The performance improvements are due to both the branchless conditional assembly generated by AlphaDev as well as the new AlphaDev swap move. For sort 5, we used a 43 length algorithm discovered by AlphaDev, as it led to a more efficient C++ implementation. These algorithms were sent for review and have officially been included in the libc++ standard sorting library3. It is the first change to these sub-routines in over a decade. This is also the first time that any component in this sort library has been replaced by an algorithm that has been automatically discovered using reinforcement learning. We estimate that these routines are being called trillions of times every day1,35,47.

Discussion

AlphaDev discovers new, state-of-the-art sorting algorithms from scratch that have been incorporated into the LLVM C++ library, used by millions of developers and applications around the world23,24,25. Both AlphaDev and stochastic search are powerful algorithms. An interesting direction for future research is to investigate combining these algorithms together to realize the complementary advantages of both approaches.

It is important to note that AlphaDev can, in theory, generalize to functions that do not require exhaustive verification of test cases. For example, hashing functions48 as well as cryptographic hashing functions49 define function correctness by the number of hashing collisions. Therefore, in this case, AlphaDev can optimize for minimizing collisions as well as latency. AlphaDev can also, in theory, optimize complicated logic components within the body of large, impressive functions. We hope that AlphaDev can provide interesting insights and inspire new approaches in both the artificial intelligence and program synthesis communities.

Methods

Background

AlphaZero

AlphaZero33 is an RL algorithm that leverages MCTS as a policy improvement operator. It consists of (1) a representation network frep that outputs a latent representation ht of the state St; and (2) a prediction network fpred that predicts the expected return (the value) \({\hat{v}}_{t}\) and a policy (that is, distribution over the action space) \({\hat{\pi }}_{t}\) from a given latent state. The algorithm uses the true dynamics and reward when planning. MuZero38 is a model-based variant of AlphaZero that has the same representation and prediction networks, but also learns a model of the dynamics and predicts rewards, which it uses for planning. Specifically, it learns a dynamics network fdyn that predicts the next latent state \({{\bf{\text{h}}}}_{t}^{k+1}\) and reward \({\hat{r}}_{t}^{k+1}\) resulting from a transition. Note that the subscript t denotes timesteps in the real environment and the superscript k represents timesteps in the model.

$${{\bf{\text{h}}}}_{t}={f}^{rep}({{\bf{\text{S}}}}_{t})$$
(1)
$${{\bf{\text{h}}}}_{t}^{k+1},\,{\hat{r}}_{t}^{k+1}={f}^{dyn}({{\bf{\text{h}}}}_{t}^{k},{{\bf{\text{a}}}}_{t}^{k})$$
(2)
$${\hat{v}}_{t},\,{\hat{\pi }}_{t}={f}^{pred}({{\bf{\text{h}}}}_{t})$$
(3)

On reaching a new state, AlphaZero proceeds by first encoding the state into a latent representation with the representation network. Then, the true dynamics or dynamics network (for MuZero) as well as the prediction network fpred(ht) are used to simulate several trajectories that fill out a search tree, by sampling state transitions. At each node, the actions are selected using an optimistic strategy called the predictor upper confidence tree bound32, meant to balance exploration (trying new actions) and exploitation (progressing further down the subtree of the current estimate of the best action). This strategy starts out by following the predicted policy \({\hat{\pi }}_{t}\) closely, and gradually shifts towards maximizing the predicted value function. Ultimately, an action is recommended by sampling from the root node with probability proportional to its visit count during MCTS. The predicted policy is then trained to match the visit counts of the MCTS policy in an attempt to distil the search procedure into a policy such that subsequent iterations of MCTS will disregard nodes that are not promising.

Sorting networks

Sorting networks are very efficient as their structures can be parallelized on modern CPU architectures. They therefore tend to achieve faster runtime performance, especially on small sorts, compared to popular and efficient base case algorithms such as insertion sort17,43,50. A sorting network43 consists of two types of item called comparators (vertical lines) and wires (horizontal lines) (Extended Data Fig. 2a). Each wire carries a value from left to right. When two wires intersect at a comparator, the values on the two wires are compared. If the value of the bottom wire is smaller than the value of the top wire, then the values are swapped between wires as seen in Extended Data Fig. 2b. A programmatic implementation of a sorting network consists of executing these swaps on particular pairs of elements from the input sequence in a particular order.

Action pruning rules

We pruned the action space by removing some program invariances (for example, the order of register allocation) and illegal instructions (for example, comparing two memory locations). This helps reducing the size of the action space and increases convergence rate. For our experiments, we used the following rules:

  1. (1)

    Memory locations are always read in incremental order.

  2. (2)

    Registers are allocated in incremental order.

  3. (3)

    We cannot compare or conditionally move to a memory location (illegal).

  4. (4)

    We can read and write to each memory location only once.

  5. (5)

    We cannot use non-initialized registers (illegal).

  6. (6)

    Do not perform consecutive compare instructions.

Training regime

We train AlphaDev on a Tensor Processing Unit (TPU) v.3, with a total batch size of 1,024 per TPU core. We use up to 16 TPU cores and train for 1 million iterations. On the actor side, the games are played on standalone TPU v.4, and we use up to 512 actors. In practice, across all tasks, training takes, in the worst case, 2 days to converge.

AlphaDev-S

It is important to understand the advantages and limitations of RL compared to other possible approaches for program optimization. As such, we implemented a state-of-the-art stochastic superoptimization approach8 and incorporated it into AlphaDev as the learning algorithm to optimize sorting functions. We refer to this adapted version as AlphaDev-S. Our re-implementation has been specifically optimized for the sorting domain. This includes implementing the algorithm to run with our assembly environment, defining a correctness and performance loss function specific to sorting and running extensive hyperparameter sweeps to identify the best variant. The cost function used for AlphaDev-S is c = correctness + α × performance where correctness corresponds to computing the number of incorrect input sequence elements that are still unsorted, performance corresponds to the algorithm length reward and α is a weight trading off the two cost functions. We are unable to optimize directly for latency as this slows down the learning algorithm considerably making learning infeasible. It should be noted that this function has been adapted to support the same set of assembly instructions used by AlphaDev as well as prune the same set of incorrect or illegal actions. It also uses the same program correctness computation module (Fig. 2b) to compute the correctness term.

AlphaDev-S is then executed by first proposing a transformation to the program stored in the buffer (which may be empty or initialized with an already sorted program). The correctness and performance terms are then computed using the program correctness module and algorithm length, respectively. If the cost is lower than the current best cost, the new program is accepted with high probability, otherwise it is rejected. We will now discuss the correctness cost function and transform weights in more detail.

Correctness cost

For the correctness cost function, we implemented three types of cost function. The first one is defined as the percentage of incorrectly placed items: \(\frac{P-P{C}_{t}}{P}\) where P is the total number of items to place and PCt is number of correctly placed items at timestep t. The second variant is the square root of this equation. The final cost function takes the square root of the difference \(\sqrt{-{PC}_{t}}\) and this is what yielded the best performance.

Program transformations

We enabled several program transformations such as adding an instruction to increase the size of the program (Add Transform), swapping two instructions (Swap Transform), randomly changing an Opcode for an instruction (Opcode Transform), randomly sampling an Operand for a chosen instruction (Operand Transform) and randomly sample an Opcode and its corresponding Operands (Instruction Transform). It is possible to influence the sampling of these transforms to encourage some to be sampled more or less frequently. We optimized the weights for sampling transforms by running an extensive hyperparameter sweep.

Investigative studies for AlphaDev variants

We now present a set of investigative studies that help to better understand the advantages and limitations of the DRL and the stochastic search learning algorithms used in AlphaDev. We compare AlphaDev to AlphaDev-S. We implemented two variants of AlphaDev-S: (1) Cold Start (AlphaDev-S-CS) and (2) Warm Start (AlphaDev-S-WS). AlphaDev-S-CS uses no previous information and has to generate a program from an empty program buffer. AlphaDev-S-WS’s buffer is warm started with a correct sorting program (for example, optimal sorting network assembly program) and it edits the program to optimize it further. We compared the variants with AlphaDev in both the individual and variable sort algorithm setups.

Because AlphaDev always learns from scratch with no previous knowledge, the direct comparison would be to the cold start stochastic search version: AlphaDev-S-CS. However, as initial near-optimal programs may sometimes be available, we also compare AlphaDev to the warm start stochastic search version: AlphaDev-S-WS.

It should be noted that the stochastic search variants are unable to optimize directly for latency, as this would make learning infeasible because of computational efficiency. As such, our AlphaDev-S variants optimize for algorithm length. Then, at the end of training, we iterate through the set of generated programs for AlphaDev-S across varying lengths and identify the program with the lowest latency.

In each case, the stochastic search algorithms (AlphaDev-S) are run using at least the same computational resources and wall-clock time to that of AlphaDev.

Fixed sort

We first examine the performance of the various approaches for the fixed sort algorithms. In this case, all algorithmic variants optimize for algorithm length as algorithm length and latency are highly correlated in the conditional branchless setting (see Supplementary Information for more details).

In the cold start setting, AlphaDev-S-CS is unable to find the optimal programs in each case as seen in Extended Data Table 2a. In addition, AlphaDev-S-CS explores orders of magnitude more programs than AlphaDev as shown in Extended Data Table 2b. In the warm start setting, AlphaDev-S is warm started with a near-optimal sorted program, and is able to match the performance of AlphaDev in each case as shown in Extended Data Table 2a. It is more computationally efficient than AlphaDev as shown in Extended Data Table 2c but explores orders of magnitude more programs for sort 3 and sort 5 as shown in Extended Data Table 2b. It can be argued that AlphaDev-S-WS has a substantial advantage in this scenario as it is provided with an initial near-optimal program. We will show in the Variable sort section that when the algorithms become more complicated and branching is introduced, warm starting the learning algorithm with a near-optimal program is not enough and can cause it to get stuck in suboptimal solutions.

Brute-force approach

We also used a brute-force approach to prove that no program shorter than 17 instructions exists for sort 3. We had to enumerate roughly 1032 programs and, even with pruning heuristics, it took more than 3 days to prove this hypothesis. For sort 4 and above this approach is infeasible.

Latency benchmarking suite

The length of a program is only a proxy for the performance of an algorithm. As we introduce branching structures, the length and latency of a program are not well correlated. Therefore, we run the programs on actual machines and measure their latency. Microbenchmarking is very challenging given the numerous noise sources that could affect the measurements. This is especially true when running on shared machines where there could be interference from other processes. Our approach is to have a separate benchmarking service, replicated on separated machines, so that we can quickly perform many measurements in a controlled environment under different conditions. The system works as follows:

  1. (1)

    The RL agent processes 1,000 measurements across the machines using the replicated service.

  2. (2)

    For each measurement, the service runs the given sorting algorithm over 10,000 random inputs (for example, for sort 3 this would be 3 × 10,000 = 30,000 random integers).

  3. (3)

    We measure the time taken using a CPU performance counter (CPU_CLK_UNHALTED.CORE).

We then take the fifth percentile as our final measurement, because we assume that most noise sources are one-sided (for example, cache misses, pre-emptions and so on). During training we process the measurements across ten machines for computational efficiency. After training, we benchmark AlphaDev’s solution against the baseline solutions, and process the measurements across 100 machines for more accuracy and noise reduction. For each benchmark, we compute confidence intervals using the distribution-free two-sided confidence interval for a quantile tabular method44.

Variable sort

When optimizing directly for latency, AlphaDev outperforms AlphaDev-S-WS on VarSort3, VarSort4 and VarSort5 as seen in Extended Data Table 3a. AlphaDev-S-CS fails to find a solution in each case. In the cases of VarSort4 and VarSort5, program length and latency are not correlated (see Supplementary Information for more details). This indicates that when program length cannot be used as a proxy for performance, AlphaDev is able to find lower latency solutions compared to AlphaDev-S. This is even in the case where the stochastic search is warm started with a near-optimal program. In addition, AlphaDev converges to the optimal solution after exploring a maximum of 12M programs as seen in Extended Data Table 3b. This is orders of magnitude lower than that of AlphaDev-S-CS and AlphaDev-S-WS, respectively (31 trillion programs in the worst case).

Exploration hypothesis

We proposed that AlphaDev-S struggles to discover programs when learning from scratch and gets stuck in local optima when warm started because of its limited exploration capabilities as a result of the stochastic search procedure. Extended Data Fig. 3 shows two-dimensional t-stochastic neighbour embedding (t-SNE) projections51 of AlphaDev and AlphaDev-S’s assembly algorithms discovered during their respective training procedures for VarSort5. The features used in the projection include correctness, latency, algorithm length and a histogram count of the instructions used per algorithm. Extended Data Fig. 3a indicates the regions in algorithm space explored by AlphaDev, AlphaDev-S-CS and AlphaDev-S-WS, respectively, whereas Extended Data Fig. 3b superimposes algorithm correctness onto each point in the t-SNE projection in which the colour indicates the correctness of each discovered algorithm, ranging from incorrect algorithms (purple) to correct algorithms (yellow). The AlphaDev-S variants both cover a densely packed circular region around their initial seed, which highlights the breadth-first nature of their stochastic search procedure. This illustrates that AlphaDev-S-CS fails to navigate through the space of incorrect algorithms in a reasonable amount of time and discover correct algorithms when learning from scratch. A similar argument applies to AlphaDev-S-WS whereby, when optimizing from an already correct but suboptimal expert demonstration, the algorithm is biased towards exploring its vicinity and struggles to escape this local maxima. By contrast, AlphaDev has more diverse algorithm space coverage, as the long-term value function is a guiding signal for discovering new and interesting parts of algorithm space. As seen in Extended Data Fig. 3b, it is capable of escaping the space of incorrect algorithms to discover a new space of correct algorithms, highlighting the exploration advantages afforded by AlphaDev.

Related work

Assembly optimization

There are numerous approaches to optimizing assembly programs, which we have classified into three groups: enumerative search, stochastic search and symbolic search5.

First, enumerative search techniques include brute-force program enumeration4,5,6 as well as implicit enumeration using symbolic theorem proving52,53. These approaches search through the space of programs to find a solution based on a predefined set of programs, heuristic and/or cost function. These approaches struggle to span large regions of program space, especially as the size and complexity of the program increases.

Second, stochastic search techniques circumvent comprehensive enumeration by relying on sampling mechanisms such as Markov chain Monte Carlo sampling5,6,8,9. Rajeev Alur et al.5 define a correctness specification, provided by a logical formula that uses symbols from a background theory. The goal is to then find an implementation expression such that logical formula defining the specification is valid. The idea is to iteratively add test cases and then search and expand the program to solve the given test cases. They optimize for correctness on problems from the book Hacker’s delight54. Phitchaya Mangpo Phothilimthana et al.6 introduce the LENS algorithm that is based on running enumerative, stochastic and symbolic search in parallel, while relying on handcrafted pruning rules. This setup is capable of optimizing up to 21 instructions, and cannot optimize for latency nor support branching. Another algorithm8 is based on Markov chain Monte Carlo rejection sampling and applies transformations to programs in assembly using a loss function that is a function of correctness and performance. Many of these approaches are prone to getting stuck in local minima and may also struggle as the size and/or complexity of the program increases. In addition, incorporating actual, measured latency into these approaches are either infeasible or prohibitively expensive.

Third, symbolic search approaches can also be implemented to optimize assembly programs. These include SAT solvers55, SMT solvers5,6 and Mixed Integer Programs (MIPs)56,57. However, these approaches suffer from scaling issues. For example, classical solvers require a problem to be translated into a certain canonical form. It usually requires an expert in the said solvers and a substantial amount of time to find an efficient formulation. In addition, for any new modification of the problem, this has to be repeated. Classical solvers are also hard to parallelize and thus, it is challenging to leverage more hardware to speed up the solving process. Another symbolic search algorithm is Cholorphyll10 that implements a multi-phase approach. It first requires as input a source program with partition annotations that specify where code and data reside. Then, a layout synthesizer maps program fragments onto physical cores to minimize computational costs. The code is then separated into per-core program fragments and the program fragments are compiled into machine code. At this point, a superoptimizer optimizes each of these fragments.

SIMD optimization

Various approaches58,59,60 have also been applied to sorting functions that run in the single instruction, multiple data (SIMD)61 setup. This setup is capable of parallelizing instruction execution, but is not supported at present in popular libraries such as LLVM’s libc++ std::sort library. One example is that from Gilles Barthe et al.7 that proposes a methodology for optimizing programs by automatically vectorizing loops with SIMD instructions. They do this by introducing a framework for verifying the correctness of transformations to a program and performing a search-based procedure using the said transformation. Their framework can discover SIMD looping structures of up to nine instructions in 0.12 s, which corresponds to a minimum 2× speed-up.

RL approaches for program synthesis

There are also several studies using RL for program optimization. Kevin Ellis et al.62 learn a policy and value function to write and evaluate code, as well as performing a Monte Carlo-style search strategy during inference. This work requires a pretraining step and aims to generate correct programs that satisfy a predefined specification. The approach is successfully applied to computer-aided design and string editing programs. SuperSonic63 uses an RL meta-optimizer to select between different RL architectures, using a Multi-Armed Bandit policy search to find a state representation, reward function and RL algorithm that is optimal for the current task. This requires keeping track of many RL algorithms and architectures, which are used as part of the state space. By contrast, our approach only focuses on training a single RL architecture, taking advantage of MCTS search and powerful state representations. Shypula et al.64 create a supervised assembly dataset and use it to train a Transformer model for mapping unoptimized to optimized code, followed by an RL stage for improving the solution quality. Our method does not require a supervised dataset or two separate training and finetuning stages, and optimizes everything end-to-end using RL and search instead. Chen et al.65 define their own domain specific language and perform input–output program synthesis that better uses the intermediate program representation to guide the synthesis routine. They show that this can be incorporated with RL, using the setup of Rudy Bunel et al.66 and improve the correctness of generated functions. They do not, however, optimize for program length or latency.

Input–output examples for program synthesis

A large body of work addresses the problem of learning programs from input–output pairs. One type of approach learns a neural network for matching inputs to outputs directly11,13,67,68. This approach is difficult to integrate into existing libraries and can struggle to generalize to previously unseen inputs, although there has been some encouraging recent progress using graph representations69. Another type of approach is to perform a search in program space, guided by a learned model12,70,71,72. For instance, Chen et al.70 use a model that predicts the next program token on the basis of a partial program and the input–output pairs. This bears some similarities to how search is guided in our approach: the learned policy prior in AlphaZero is a model for predicting the next token, learned on the basis of a combination of a partial program and that program’s effects on the inputs. However, we are interested in finding correct and efficient programs, which we achieve by further learning a value function for approximating the expected latency of partial programs, and using AlphaZero to incorporate this value function into the search process.

Deep learning for code generation

There are also several deep learning approaches that use large languages models to generate code. These approaches vary in their uses from transpilation, code refactoring and explaining code15 to generating human-level competitive code using a natural language description14. That particular work aims to generate correct code, but does not focus on generating low-latency solutions.

Sort-based program optimization

There are several program synthesis studies that have tackled sorting algorithms. For example, White et al.26 use RL for learning sorting functions. Their work uses several heuristics and a domain specific language to yield a sorting algorithm called reinforcement programming sort. Srivastava et al.27 encodes the program synthesis as a verification problem. Specifically, they represent a synthesis task as a tuple consisting of the functional expression, the domains and guards appearing in the synthesized program and the resource constraints. The idea is that, given a prespecified resource constraint, their synthesizer produces a program that meets the predefined specification to ensure correctness. They apply this to discover merge sort and quick sort. Jason Ansel et al.28 takes as input predefined algorithms (for example, insertion sort, merge sort and quick sort) and then determines when to select these algorithms for execution using its autotuner function. It does so by defining a language that contains rules and transforms that dictate how the algorithms are selected and where they are executed.
