WWDC19

Getting Started with Instruments
開始使用 Instruments

The Instruments app in Xcode provides a rich set of tools and templates for profiling your app performance. Learn all about Instruments and gain strategies for identifying bottlenecks in your code. See just how to leverage the power of time profiling and points of interest tracking to make meaningful changes to your code that can dramatically improve app responsiveness.
Xcode 中的 Instruments 應用程式提供了一套豐富的工具和範本，用於分析您的應用程式性能。了解所有有關 Instruments 的資訊，並獲得識別代碼瓶頸的策略。看看如何利用時間分析和興趣點追蹤的力量，對您的代碼進行有意義的更改，從而顯著改善應用程式的響應能力。

Time Profiler  時間分析器

  • uses infrastructure provided by the operating system to collect call stacks of relevant threads at a fixed interval.
    使用操作系統提供的基礎設施，在固定的時間間隔內收集相關線程的調用堆棧。

Points of Interest  興趣點

  • collects data from important areas of the app that we can highlight using various APIs such as Signpost API.
    從應用程式的重要區域收集數據，我們可以使用各種 API 來突出顯示，例如 Signpost API。

Time Profile Template  時間配置模板

  • This template is used to profile both time and POI
    此模板用於分析時間和 POI

  • lets us add even more instruments to get more insights on the app.
    讓我們添加更多工具，以獲得有關應用程式的更多見解。

  • great tool for looking at issues that occur over a particular window of time.
    很棒的工具，用於查看在特定時間範圍內發生的問題。

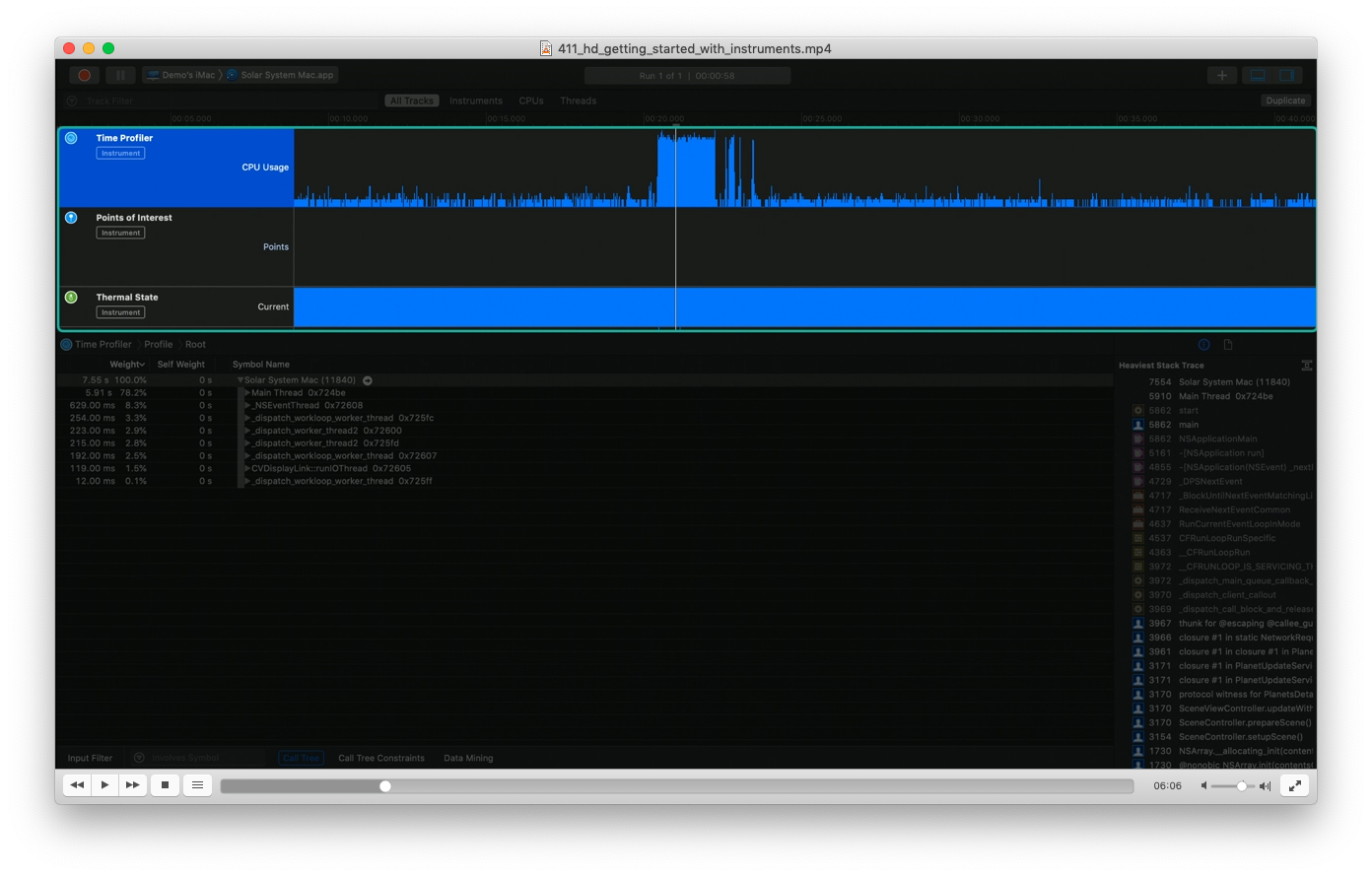

Track Viewer  追蹤檢視器



  • A Track shows time series trace data corresponding to one source of events, such as the process, thread, or CPU core.
    一個追蹤顯示與一個事件來源相對應的時間序列追蹤數據，例如進程、線程或 CPU 核心。

  • A single Instrument may contribute trace data to multiple Tracks.
    單一儀器可以將追蹤數據貢獻給多個軌道。

  • The top Track is a summary of our application’s CPU utilization provided by the Time Profiler Instrument.
    頂部的追蹤是由時間分析工具提供的我們應用程式 CPU 使用率的摘要。

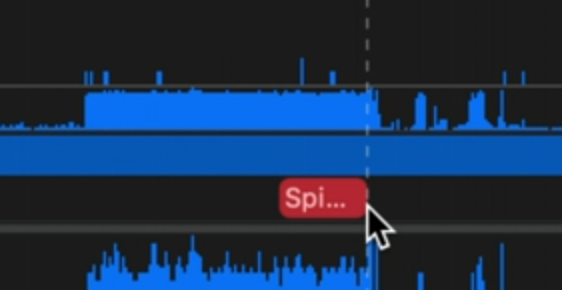

  • Spinning is how Instruments refers to your main thread being blocked:
    旋轉是 Instruments 用來指您的主執行緒被阻塞的方式：

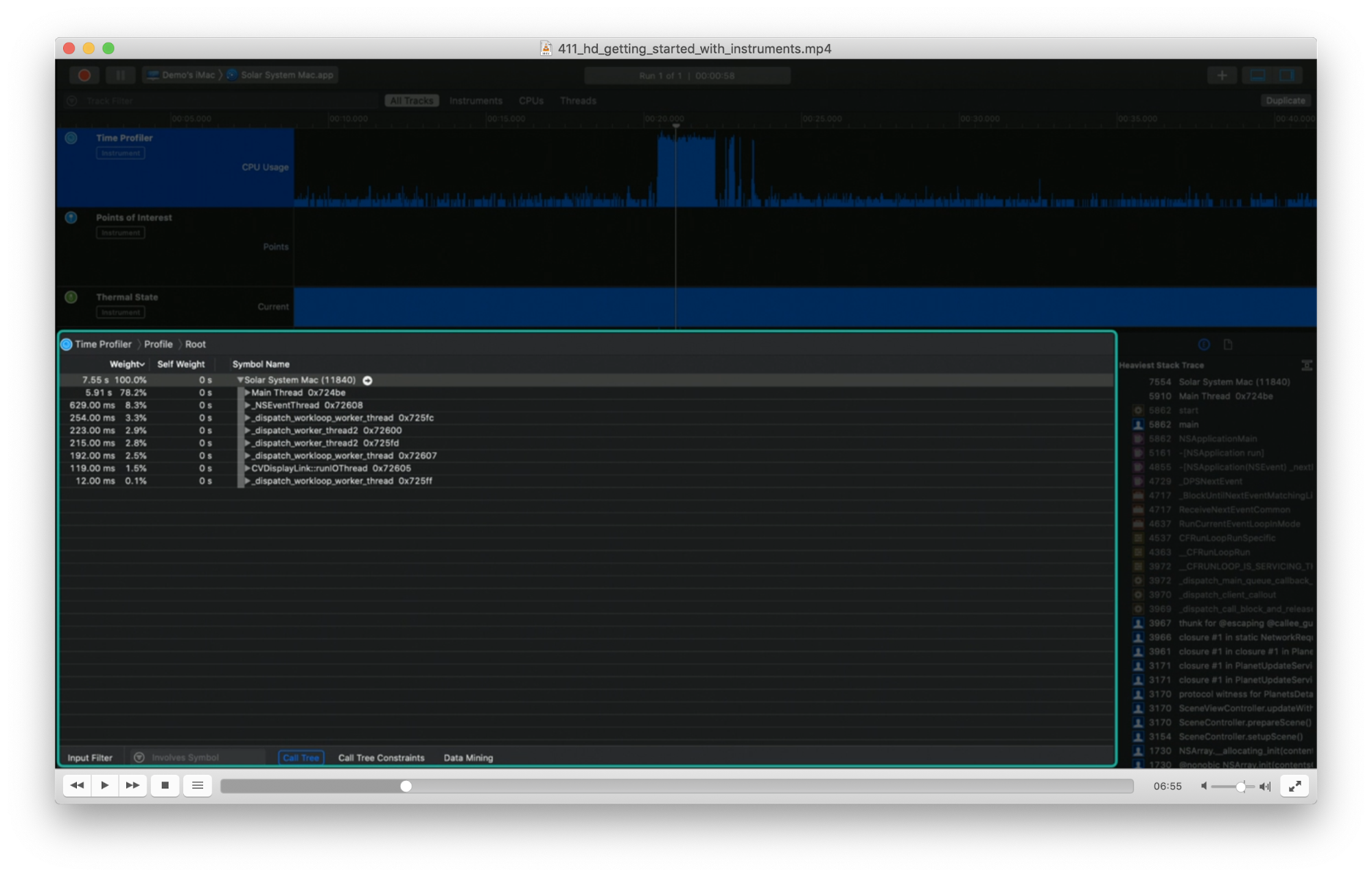

Details View  詳細檢視

  • allows to explore the trace data for the selected Track.
    允許探索所選追蹤的追蹤數據。

  • when a time profiler trace is selected, it shows us a call graph: these are all the functions that were invoked during the time of the profile.
    當選擇時間分析器追蹤時，它會顯示我們一個調用圖：這些是分析期間被調用的所有函數。

Detail inspector  詳細檢查器

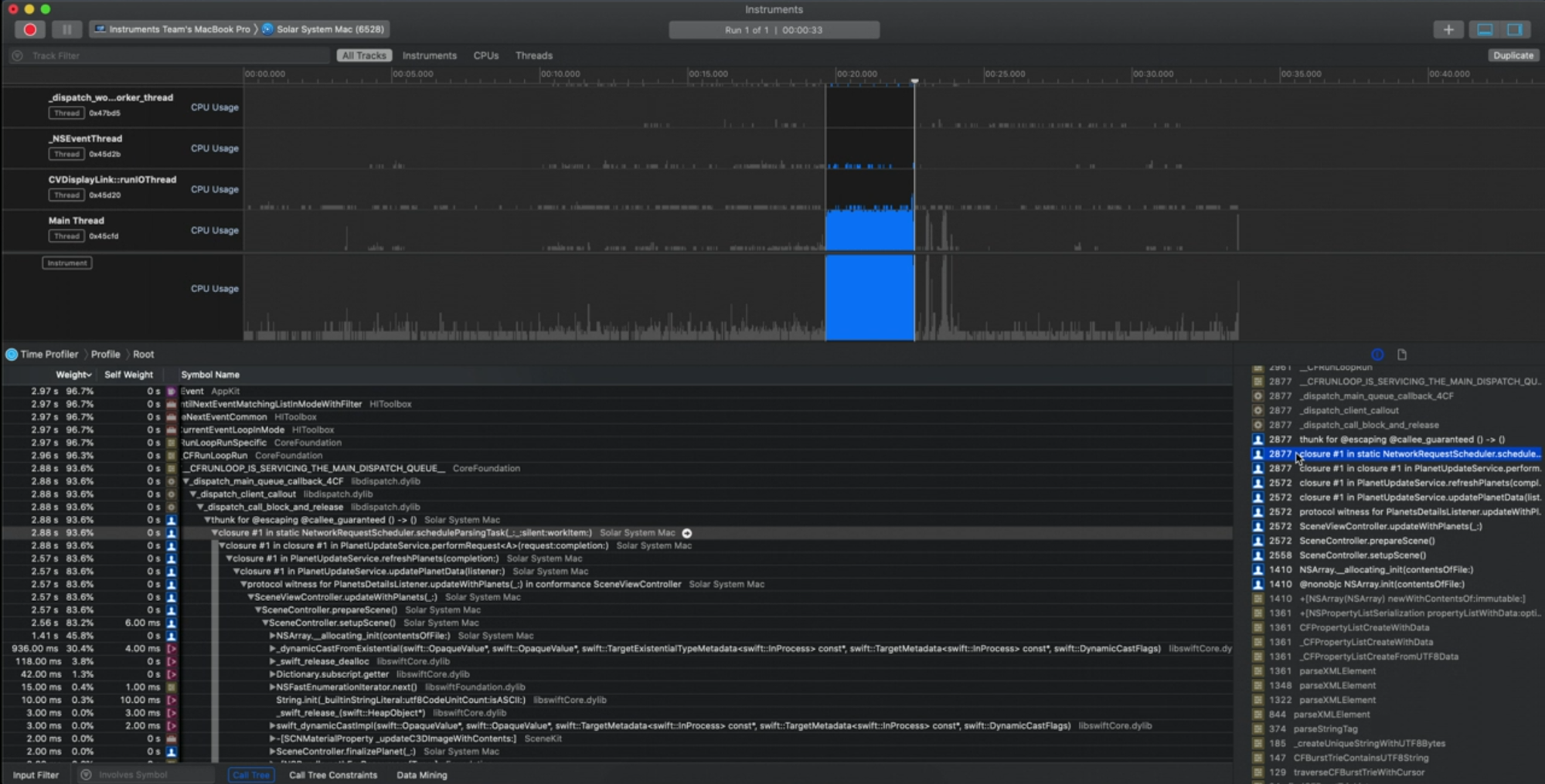

  • When exploring the detail inspector (right column), we can click on a closure row to see it selected in the Detail view:
    當探索詳細檢查器（右側欄位）時，我們可以點擊一個閉包行以在詳細視圖中查看其被選中

  • Double clicking the closure in the inspector jumps right into the line of code in the source.
    在檢查器中雙擊閉包會直接跳轉到源代碼中的那一行。

Profiling tips  性能分析技巧

  • If you have response issues, check the main thread in the time profile.
    如果您有回應問題，請檢查時間配置檔中的主要線程。

  • profile in release mode  在釋出模式下的配置

Using Signposts  使用指示牌

  • More performant the print statements and the likes
    更高效的打印語句及類似內容

  • Natively supported by Instruments
    原生支援 Instruments

  • Has its own dedicated trace: Point of interestsThe POI trace shows a region of interest that corresponds to a Signpost interval that I added to my code.
    擁有自己的專用追蹤：興趣點 POI 追蹤顯示了一個與我添加到代碼中的指示牌間隔相對應的興趣區域。

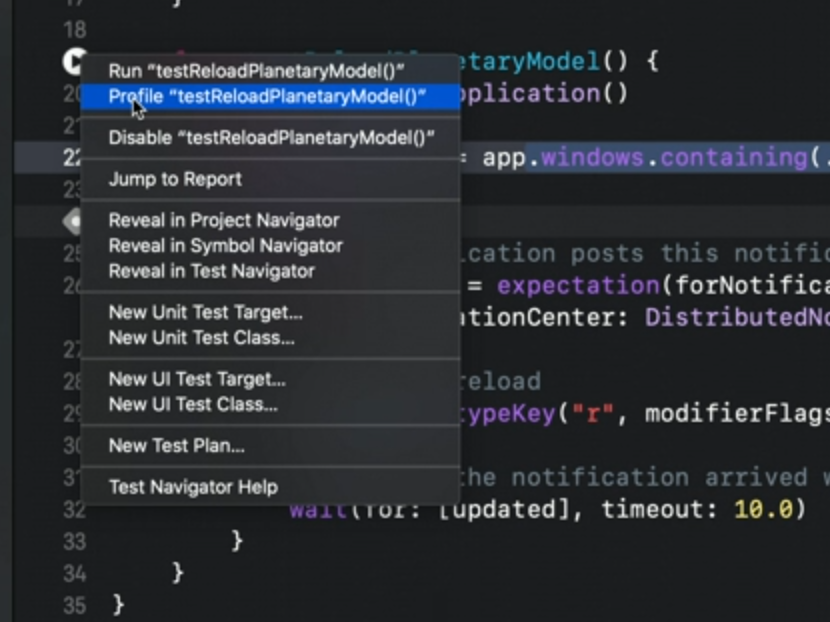

Profile Tests  個人資料測試
